Самоходный транспортер для багажа CBL150E

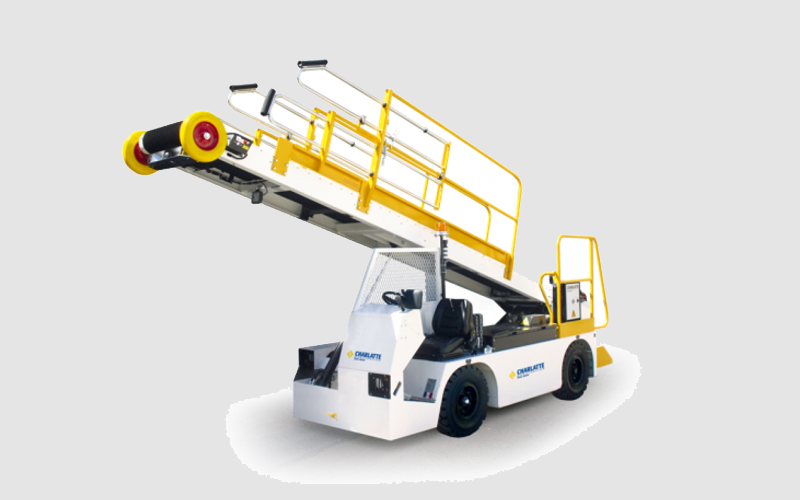

The Model CBL150E Intermediate Beltloader is capable of servicing all types of aircraft with door sill heights ranging from 36” up to 130”. The unit’s size and design make it the perfect unit for regional and narrowbody operations. Power for the main drive is supplied by a 5 hp DC series wound motor, which gives the unit a 12 MPH running speed on level ground. The unit can be powered by either an industrial battery or monobloc batteries. Options include onboard charging, fast charging, and rear-lift cylinder.
- 20’ conveyer boom
- Front brakes
- Rear leafspring suspension
- DC drive motor directly coupled to rear axle
- Dual split master service hydraulic braking system
- Hydraulic power steering
- Belt controls located at front and rear of boom
- Three belt speeds
- Self-aligning belt system
- Automatic speed reduction (raised boom) on approach to aircraf
- Rear lift cylinder
- Fast charging
- On-board charging
- PONYA light configuration
- Work ilghts
- Additional handrail configurations
